Illumina 接头系列

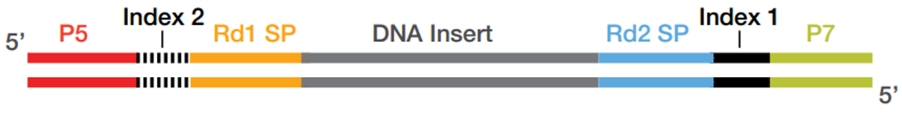

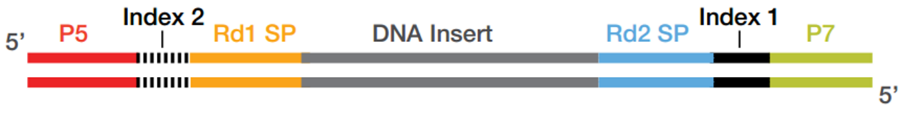

测序的第一步是通过DNA或RNA构建文库。如图1所示,文库中包含DNA插入 片段(DNA Insert),两端各有一个接头。

图1:双index文库片段示意图
接头包含:
- P5和P7序列:允许文库结合且能在flow cell上生成簇的序列
- Rd1 SP和Rd2 SP:启动测序的测序引物结合位点
- Index 1和Index 2:用于样本区 分的index序列,可允许单次测序或单个Flow Cell通道中混合多个样本
Illumina提供多种接头试剂盒来实现更灵活和多样性的index策略,Illumina接头试剂盒之间的差异主要基于支持的样本数量,index的长度和序列,和连接到插入片段的化学方法的不同。
以下表格列出了Illumina接头试剂盒的产品规格:
- 复杂性指每个试剂盒中index序列种类的数量
- Index长度指分别读取index 1和index 2所需的测序循环数量
基于连接方式的接头 | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
接头名称 | 类别 | 复杂性 | Index长度 | 兼容的文库制备试剂盒 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq™ DNA/RNA Single Indexes
Set A and B | 单index
(管装) | 24个样本
(每套12种index) | 6 + 0 | Nextera Mate Pair | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq ChIP-Seq | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq DNA Nano | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq DNA PCR Free | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq DNA Exome | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq Methyl Capture EPIC (Set A only) | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq RNA Exome | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq RNA V2 | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq Stranded mRNA | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq Stranded Total RNA | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSight RNA Fusion | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSight RNA PanCancer | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq DNA/RNA CD Indexes | 组合双index
(板装) | 96 | 8 + 8 | TruSeq DNA Exome | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq DNA Nano | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq DNA PCR Free | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq Stranded mRNA | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq Stranded Total RNA | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IDT for Illumina
- TruSeq DNA/RNA UD Indexes (and v2) | 唯一双index
(板装) | 24 或者 96 | 8 + 8 | TruSeq DNA Exome | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq DNA Nano | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq DNA PCR Free | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq Stranded mRNA | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSeq Stranded Total RNA | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSight Tumor 170 and
TruSight Oncology Indexes | 组合双index(DNA),
唯一双index(RNA)
(管装/板装) | 16 | 8 + 8 | TruSight Oncology 500 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TruSight Tumor 170 | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
唯一双index
(管装) | 16 | 8 + 8 | TruSight Oncology ctDNA | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AmpliSeq CD Indexes
Set A-D for Illumina | 组合双index
(板装) | 384个样本
(每套96种index) | 8 + 8 | AmpliSeq Panels | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AmpliSeq UD Indexes for Illumina | 唯一双index <p style="margin-bottom: 1.5rem;text-align: center;">(板装)</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">24</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">8 + 8</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">AmpliSeq Panels</p> </td></tr></tbody></table>
| | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
基于PCR扩增方式连接的接头 | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
接头名称 | 类别 | 复杂性 | Index长度 | 兼容的文库制备试剂盒 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Nextera™ DNA CD Indexes | 组合双index
(24种index-管装,96种index-板装) | 24 或者 96 | 8 + 8 | Nextera DNA Exome | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumina DNA Prep,
(M) Tagmentation1 | | | | | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Nextera XT Index Kit v2 Set A-D | 组合双index,兼容磁珠标准化的定量方式 <p style="margin-bottom: 1.5rem;text-align: center;">(管装)</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">384个样本<br> (每套96种index)</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">8 + 8</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">Nextera XT</p> </td></tr><tr><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">Nextera XT Index Kit</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">组合双index,兼容磁珠的标准化的定量方式</p> <p style="margin-bottom: 1.5rem;text-align: center;">(管装)</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">24</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">8 + 8</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">Nextera XT</p> </td></tr><tr><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">TruSeq Custom Amplicon Index Kit</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">组合双index,兼容磁珠标准化的定量方式</p> <p style="margin-bottom: 1.5rem;text-align: center;">(管装)</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">96</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">8 + 8</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">TruSight Myeloid Sequencing Panel</p> </td></tr><tr><td colspan="1" rowspan="2"> <p style="margin-bottom: 1.5rem;text-align: center;">R7XX/A5XX index kits</p> </td><td colspan="1" rowspan="2"> <p style="margin-bottom: 1.5rem;text-align: center;">组合双index</p> <p style="margin-bottom: 1.5rem;text-align: center;">(管装)</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">24</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">6 + 8</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">TruSight Tumor 15</p> </td></tr><tr><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">48 或者 384个样本<br> (每套96种index)</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">6 + 8</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">TruSeq Target RNA Expression</p> </td></tr><tr><td colspan="1" rowspan="6"> <p style="margin-bottom: 1.5rem;text-align: center;">TruSight™ Rapid Capture Kits</p> </td><td colspan="1" rowspan="6"> <p style="margin-bottom: 1.5rem;text-align: center;">组合双index</p> <p style="margin-bottom: 1.5rem;text-align: center;">(管装)</p> </td><td colspan="1" rowspan="6"> <p style="margin-bottom: 1.5rem;text-align: center;">1,2,4,24 或者 96</p> </td><td colspan="1" rowspan="6"> <p style="margin-bottom: 1.5rem;text-align: center;">8 + 8</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">TruSight Cancer</p> </td></tr><tr><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">TruSeq Neurodegeneration</p> </td></tr><tr><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">TruSight Cardio</p> </td></tr><tr><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">TruSight Inherited Disease</p> </td></tr><tr><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">TruSight One</p> </td></tr><tr><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">TruSight Rapid Capture</p> </td></tr><tr><td colspan="1" rowspan="5"> <p style="margin-bottom: 1.5rem;text-align: center;">IDT for Illumina -<br> DNA/RNA UD Indexes Set A-D,<br> Tagmentation<span style="font-size: 10.5px;line-height: 0;vertical-align: baseline;top: -0.5em;">3</span></p> </td><td colspan="1" rowspan="5"> <p style="margin-bottom: 1.5rem;text-align: center;">唯一双index</p> <p style="margin-bottom: 1.5rem;text-align: center;">(板装)</p> </td><td colspan="1" rowspan="5"> <p style="margin-bottom: 1.5rem;text-align: center;">384个样本 (每套96种index)</p> </td><td colspan="1" rowspan="5"> <p style="margin-bottom: 1.5rem;text-align: center;">10 + 10</p> </td><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">Illumina RNA Prep with Enrichment,<br> (L) Tagmentation</p> </td></tr><tr><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">Illumina DNA Prep,<br> (M) Tagmentation<span style="font-size: 10.5px;line-height: 0;vertical-align: baseline;top: -0.5em;">1</span></p> </td></tr><tr><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">Illumina DNA Prep with Enrichment,<br> (S) Tagmentation<span style="font-size: 10.5px;line-height: 0;vertical-align: baseline;top: -0.5em;">2</span></p> </td></tr><tr><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">Nextera XT</p> </td></tr><tr><td colspan="1" rowspan="1"> <p style="margin-bottom: 1.5rem;text-align: center;">Illumina DNA PCR-Free Prep,<br> Tagmentation<span style="font-size: 10.5px;line-height: 0;vertical-align: baseline;top: -0.5em;">4</span></p> </td></tr></tbody></table>
|
